(40 bar and 70 bar)
Applications:
- High pressure pumps with low volumetric delivery
- Cutting, turning milling, boring, grinding and similar applications of machine tools
- Especially used for deep hole boring operations due to the high pressure up to 100 bar
- Pumping cutting/cooling fluids in circulation systems
Fluid Specifications:
- Coolants
- Cutting oils
- Grinding oil
- Emulsions (minimum 5% oil)
- Thermal oils (contact for detailed information)
- Kinematic viscosity 1…400 mm2 /s (contact for higher viscosities)
Materials:
Spindles: high performance steel
Pump body: Cast iron – DIN GG 25
Suction casing: Cast iron – DIN GG 25
Discharge casing: Cast iron – DIN GG 25
Housing and coupling: Aluminium
Rotary shaft lip-type seal: PTFE
O-ring: FKM (FPM)
suction pipe: Steel
Motor:
IE2 3-phase induction motor
2-pole, 3000 RPM
Protection degree, IP 55
Insulation class F

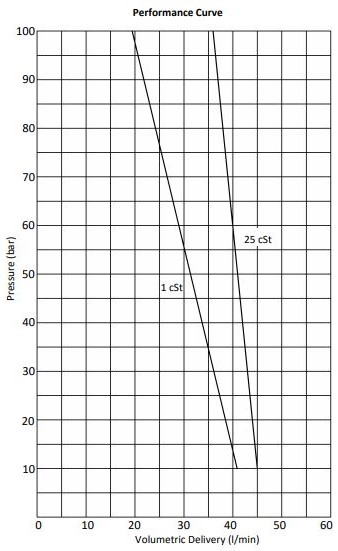

| Type | Output (kW) | Weight (kg) | Discharge volume 1 cSt (l/min) | Discharge volume 25 cSt (l/min) |
|---|---|---|---|---|
| 40 bar | 4 | 48 | 33,8 | 41,7 |
| 70 bar | 7,5 | 62 | 26,2 | 38,7 |

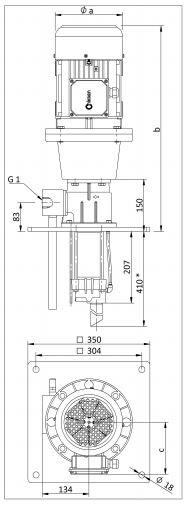

| Type | Dimension a (mm) | Dimension b (mm) | Dimension c (mm) |
|---|---|---|---|
| 40 bar | 194 | 570 | 150 |
| 70 bar | 258 | 705 | 177 |
