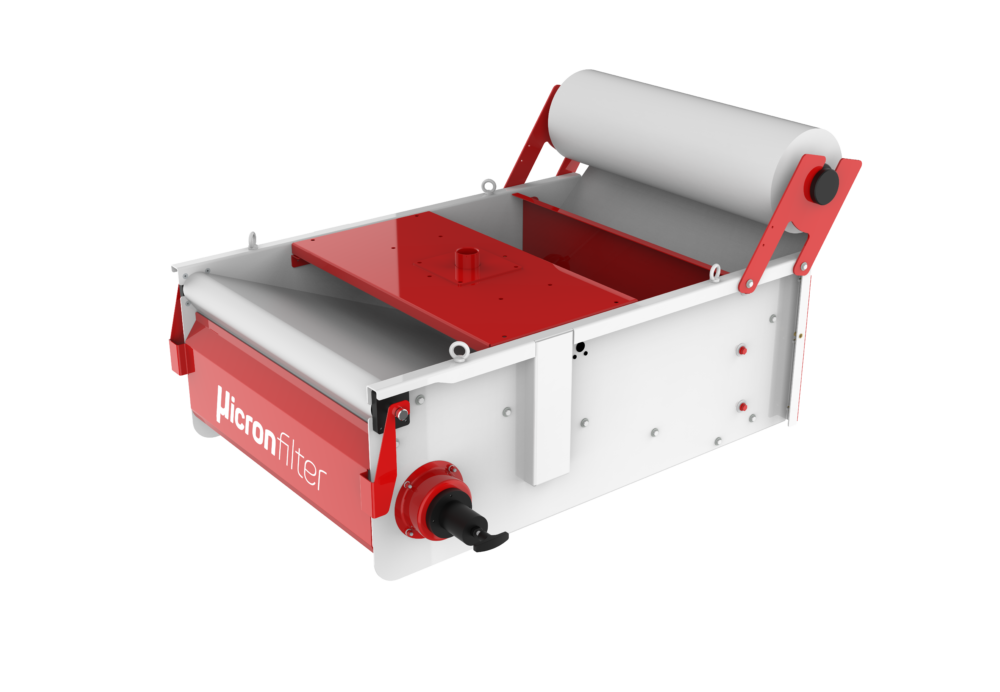

The Evotech Deep purifier represents the cutting edge in lubricant-coolant filtration. Its taller frame compared to Evotech effectively exploits high hydrostatic pressure, increasing the volume of liquid treated for the same filtering surface area. This innovative design allows for greater flow and reduces filter media consumption, optimizing system efficiency. With higher flow rates than standard models and available in stainless steel, Evotech Deep is perfectly suited to a variety of industrial needs. Its customizability makes it an ideal solution for those seeking cutting-edge filtration performance.
Working principle
The contaminated liquid (1) flows and spreads evenly into the filter bed (2). As the fluid flows into the filter it is forced to pass through the filter media by gravity. This process separates the contaminating solids from the liquid and deposits them on the filter media (3), further enhancing the filtration efficiency. When the progressive accumulation of solids clogs the filter media and the liquid can no longer flow through the filter media, the liquid level rises together with the float (4), which activates a proximity switch. The proximity switch activates the gearmotor (5) and the filter media is advanced forwarding. As the fabric moves forward, a scraper (6) separates the dirty fabric from the sludge and is rewound on the reel (7), thus facilitating the separation of solid waste and reducing disposal costs.
| EVO 500 DP | EVO 700 DP | EVO 1000 DP | EVO 1200 DP | EVO 1500 DP | |
|---|---|---|---|---|---|
| Emulsion flow rate (L/min) | 130 | 220 | 340 | 450 | 600 |
| Oil flow rate (L/min) | 75 | 110 | 170 | 225 | 300 |
| Motor power (kW) | 0,12 | 0,12 | 0,12 | 0,12 | 0,12 |
| Weight (kg) | 73 | 79 | 110 | 123 | 149 |
| Modell | A | B | C |
|---|---|---|---|
| EVO 500 DP | 500 | 850 | 1085 |
| EVO 700 DP | 700 | 1050 | 1085 |
| EVO 1000 DP | 1000 | 1350 | 1250 |
| EVO 1200 DP | 1250 | 1550 | 1250 |
| EVO 1500 DP | 1500 | 1820 | 1435 |
